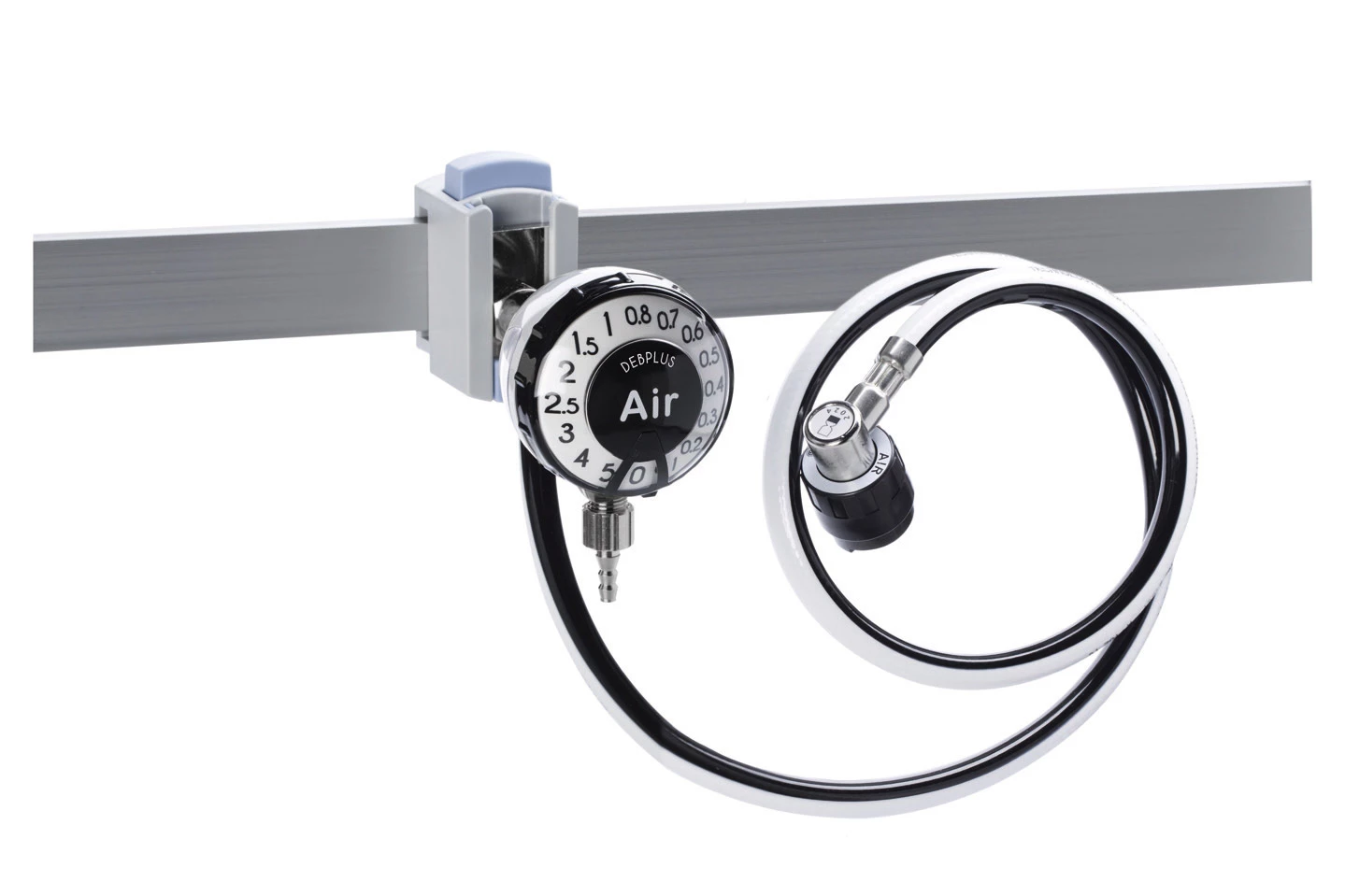

The flowmeters with pre-adjusted flowrates DEBFLO and DEBPLUS are used to set the flow of a gas that is to be delivered to patients through the respiratory tract. They should be connected to a source of pressured gas on the wall either using a direct probe or a rail mounting system. They must be fitted at the outlet either with a humidifier/nebulizer or with an outlet tubing nipple.

Specifications:

• Flowmeter with pre-adjusted flowrates: accurate and stable flowrates.
• It can be used in any orientation for a perfect adaptation to the medical needs especially for emergency.
• 15 different flowrates available for each version.
• Great readability for a perfect readability of all the flowrates even from a distance.
• Built-in regulator (DEBPLUS) providing precise flow in case of non-stable gas network.
• Good grip of the control wheel.
• Flow control knob equipped with a ratchet mechanism avoiding accidental flowrate change.
• Presence of a gas flow between two positions ensuring the gas supply for the patient even if the device is accidentally positioned between two settings.
• Supplied with a stop system preventing the medical staff from switching from 0 to the maximum flow and conversely.
• Unit serial number engraved on each flowmeter body ensuring its identification and its traceability.

Inlet pressure:

• DEBFLO: 4.5 bar +/- 0.5
• DEBPLUS: 2.8 to 8 bar

Available Versions:

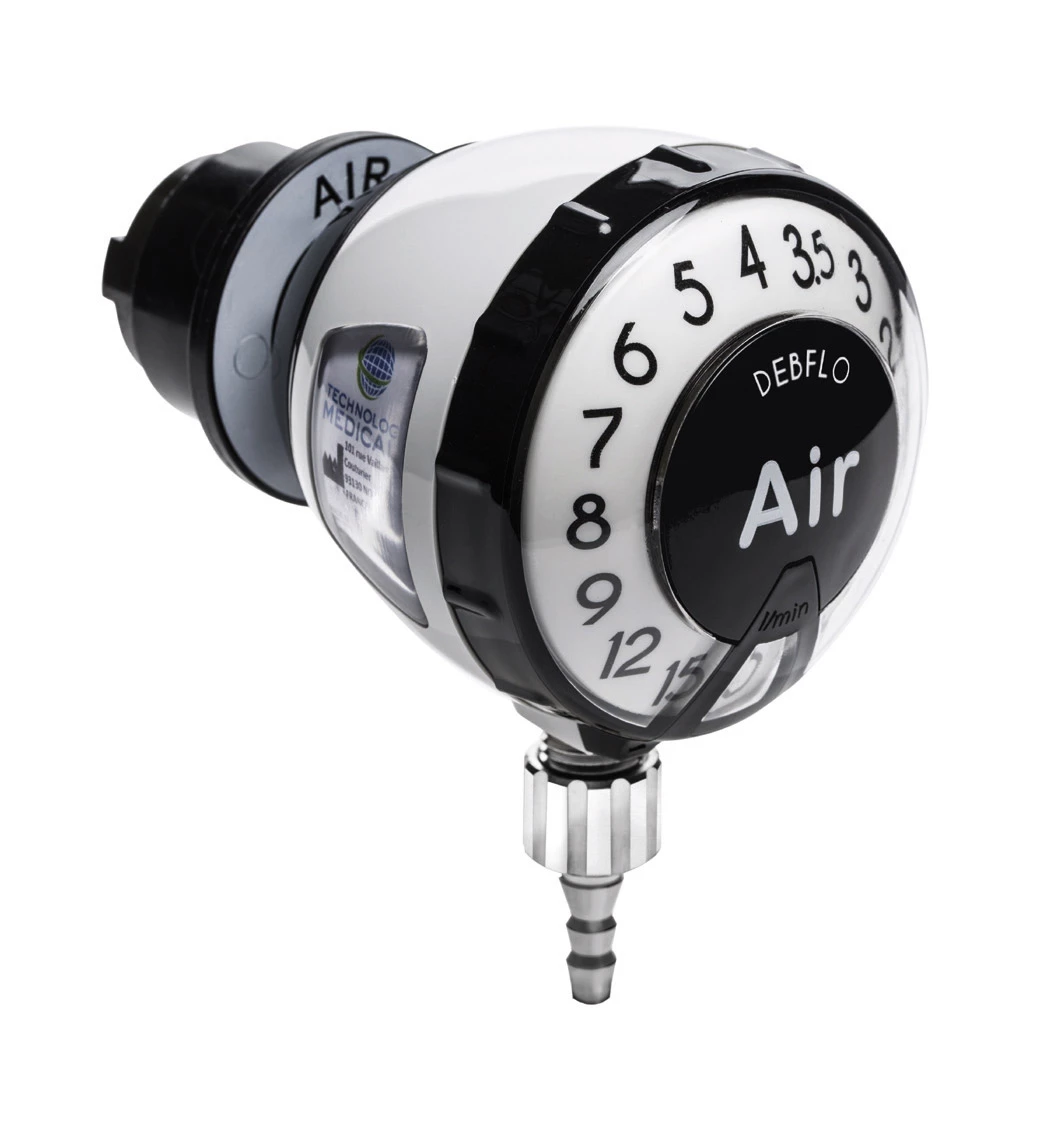

• DEBFLO without built-in regulator (grey body)
• DEBPLUS with built-in regulator (white body)
• Gases: O₂, medical AIR
• Flowrates: 5 l/min, 15 l/min

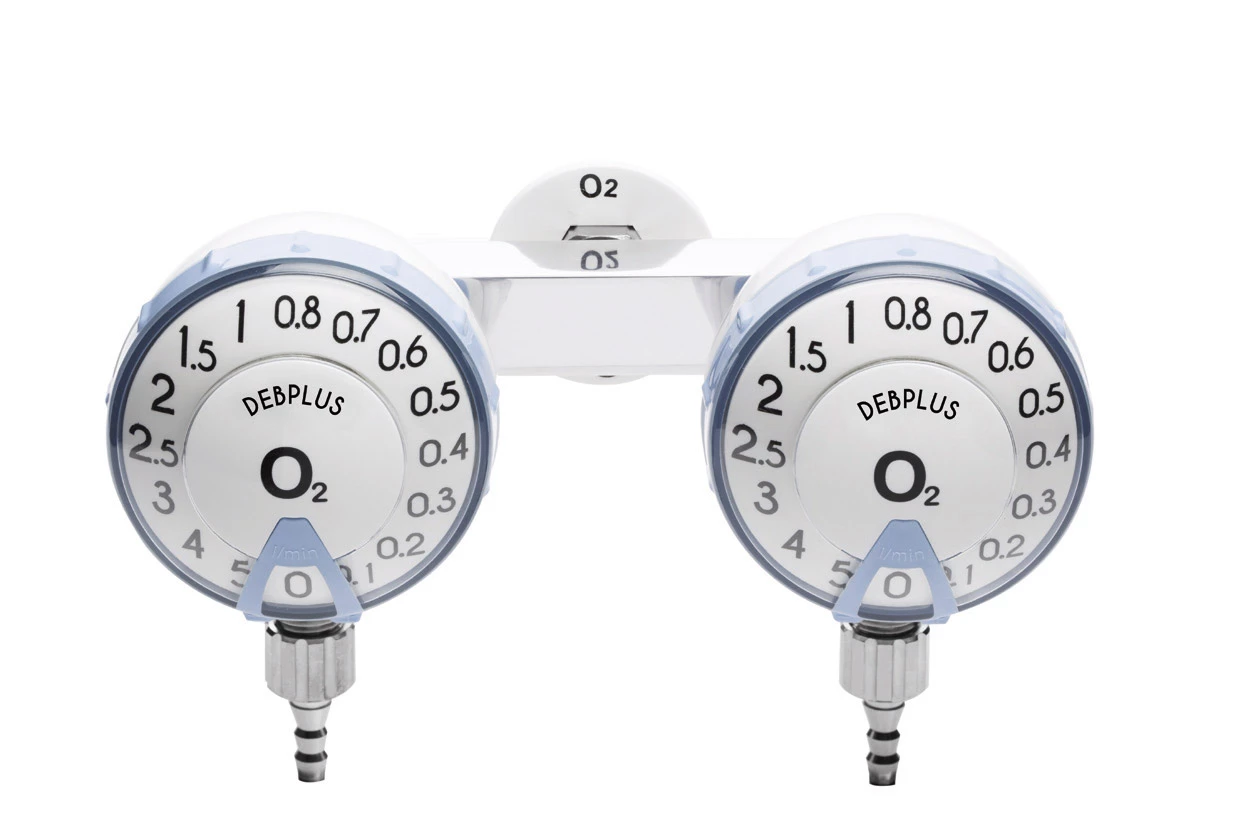

• Single and twin version

Standards:

AFNOR (French standard), BS (British standard), DIN (German standard), US OHMEDA (American standard), UNI (Italian standard), NORDIC (Scandinavian standard), CARBUROS METALICOS (Spanish standard), DISS (American standard), Czech standard, SANS/SABS (South African standard) and Korean/Japanese standard. Contact us for other standard.
