FLOW GAUGE REGULATORS
-
Category
HEALTHCARE / REGULATORS
-
Manufacture
AMCAREMED MEDICAL GAS SYSTEMS
Amcaremed flow gauge regulators are the pressure-reducing device that can depressurize the high-pressure gas in the cylinder.

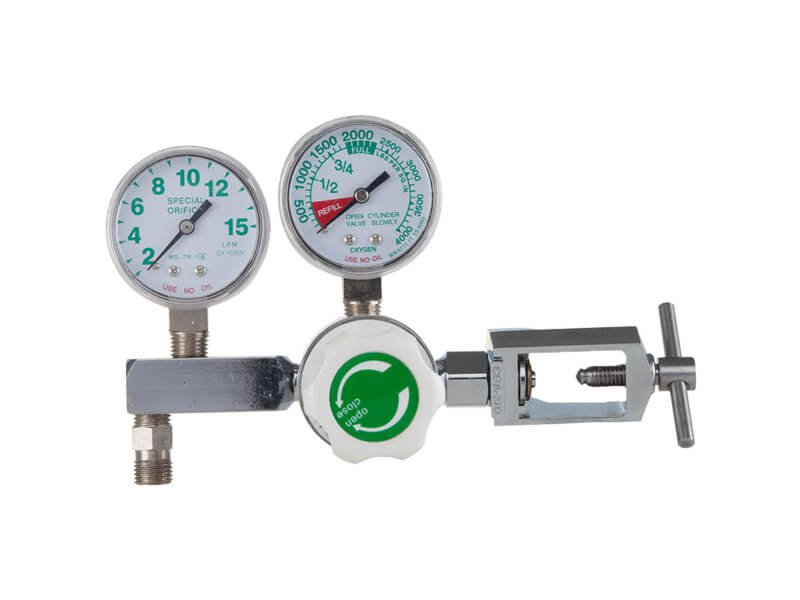

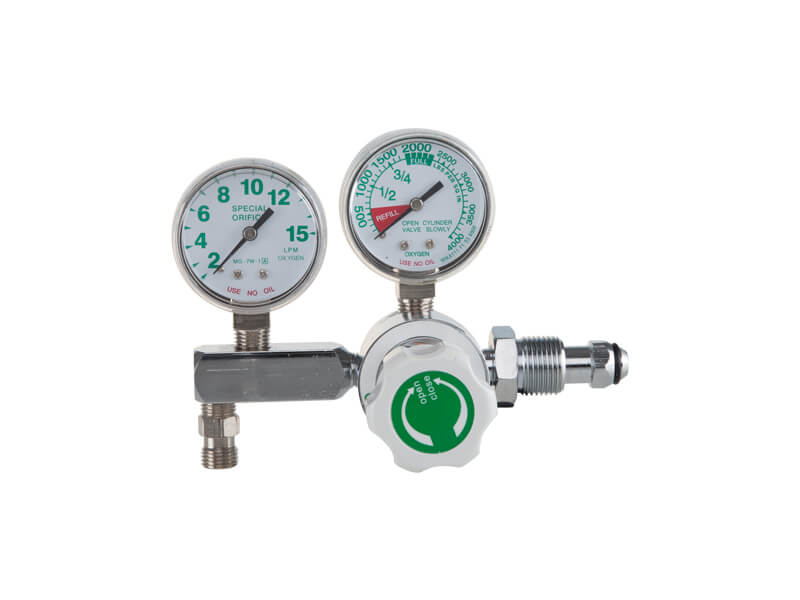

The flow gauge regulator has two dials that show gas flow and inlet pressure. It can maintain a stable outlet pressure under changing operating conditions of input pressure and output flow. Flow gauge regulator suitable high pressure, usually applying to anesthesia apparatus, respirator, and other medical gas equipment. Diaphragm and maternal adopt hard seal form.
Specifications
- Chrome-plated brass body with all brass high-pressure chamber
- 4000PSI maximum inlet pressure
- 1-1/2″ diameter gauges
- Internal relief valve
- Sintered inlet filter for longer service life
- Complies to CGA standards
- With the choice of inlet and outlet connection
- Large-size integrated casting body
- Diaphragm pressure mechanism, the output pressure stable
Models Number
| Model | Flow Range | Inlet Pressure | Inlet Connection | Outlet Pressure |
| AM-O-GR-582 | 0-5, 0-10, 0-15LPM | 4000PSI | CGA540 | 50PSI |
| AM-O-GR-584 | 0-5, 0-10, 0-15LPM | 4000PSI | CGA992 | 50PSI |
| AM-O-GR-586 | 0-5, 0-10, 0-15LPM | 4000PSI | CGA870 | 50PSI |
| AM-O-GR-588 | 0-5, 0-10, 0-15LPM | 4000PSI | CGA992 | 50PSI |
| AM-O-GR-590 | – | 4000PSI | CGA540 | 50PSI |
| More connector types can be provided according to customer requirements | ||||
